Pipes Double

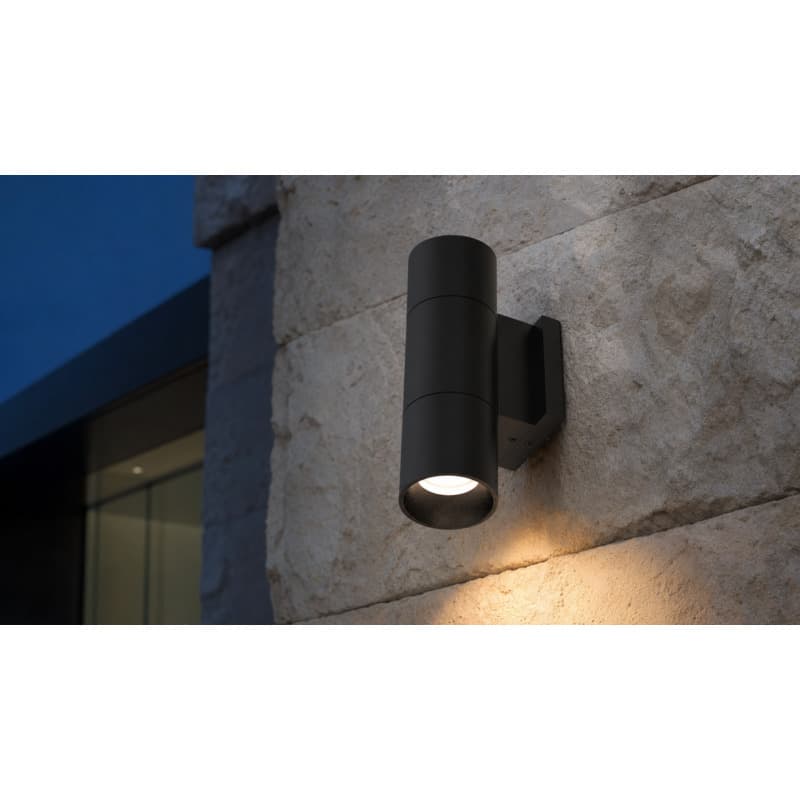

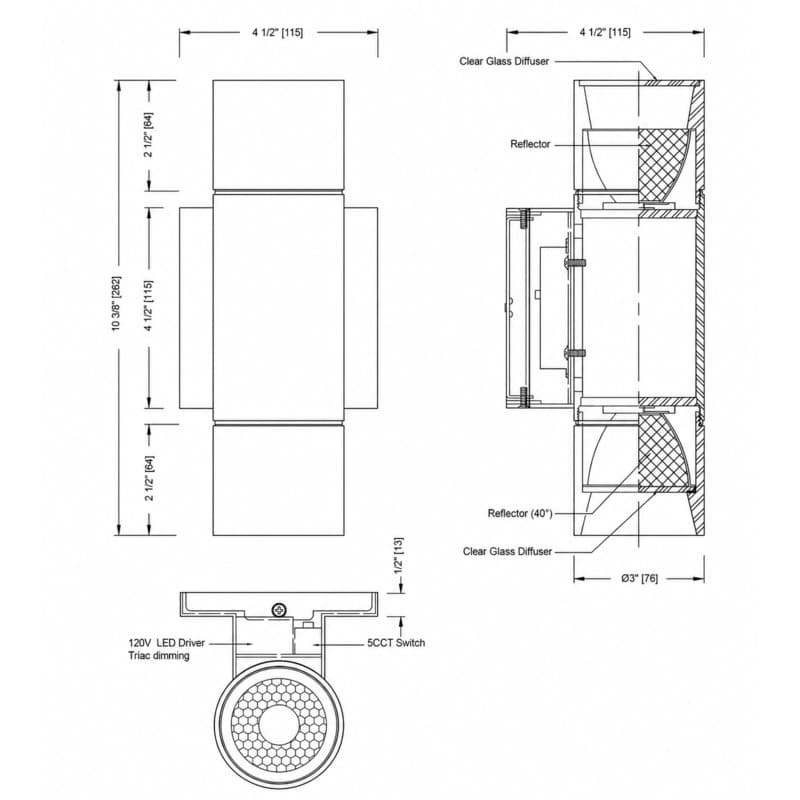

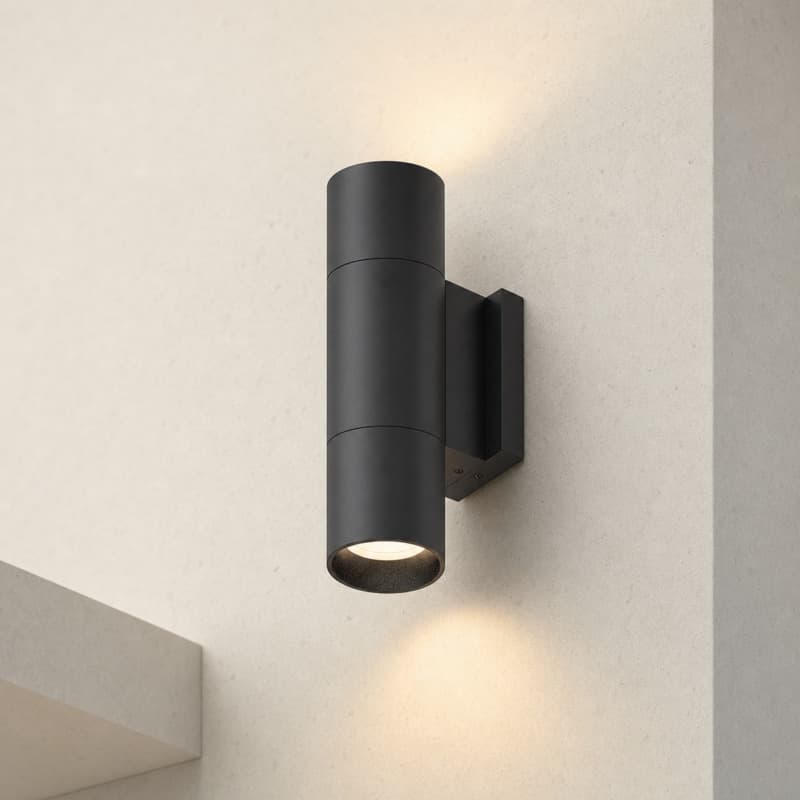

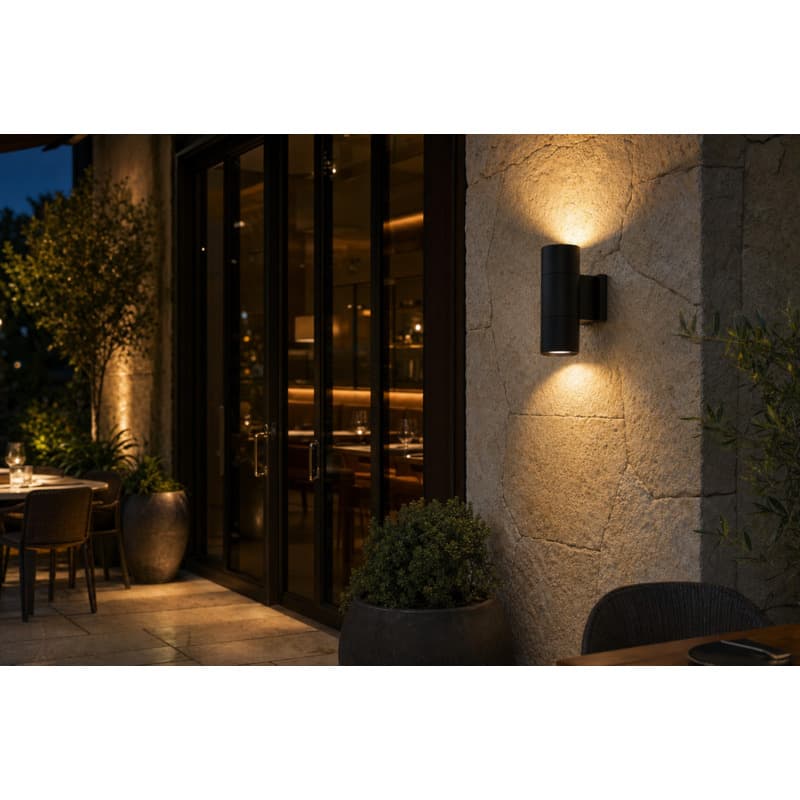

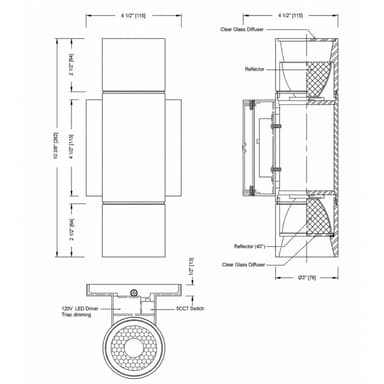

Pipes Double is a compact cylindrical wall sconce that distributes light in two directions, up and down, producing a symmetrical wash across the wall and ceiling planes adjacent to it. The result is a balanced pair of scallops from a fixture that reads as a simple 10-3/8 in tube on the wall. The body is built from steel and aluminum with a painted matte black finish. Each end carries a clear glass diffuser over a 40 deg reflector, shielding the LED sources while keeping the beam edge defined rather than diffuse. Two integrated DC LED modules draw 7W each, 14W total, for 1,400 initial lumens at CRI 90. Colour temperature is specified at order in five steps from 2400K to 4000K, and the fixture runs on 120 VAC / 60 Hz with Triac dimming. Mounting is over a standard 4 in x 4 in junction box, with a 4-1/2 in extension from the wall. The fixture is wet rated, so it can be specified on exposed exterior walls as readily as on covered ones.
