Button DO

SKU: BUTTON-DO

Price on demand

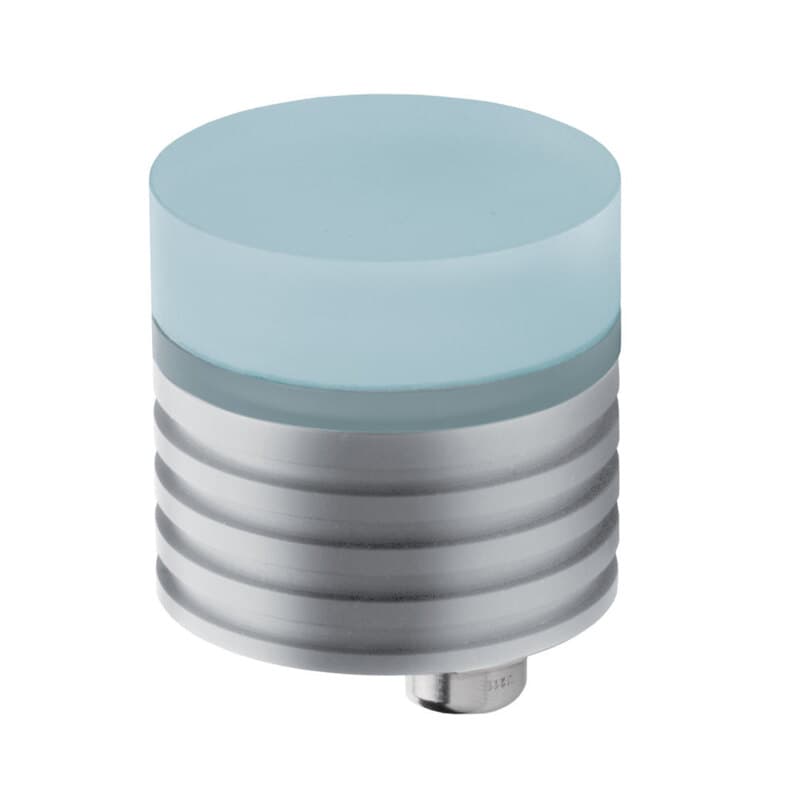

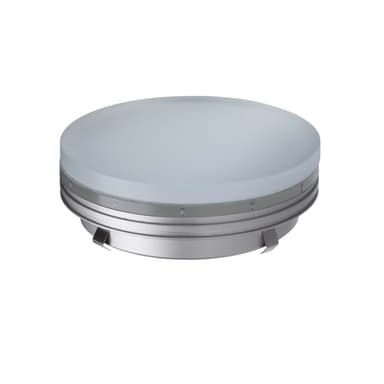

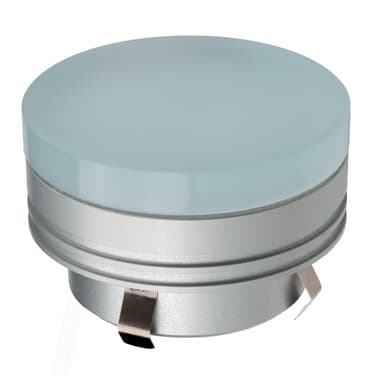

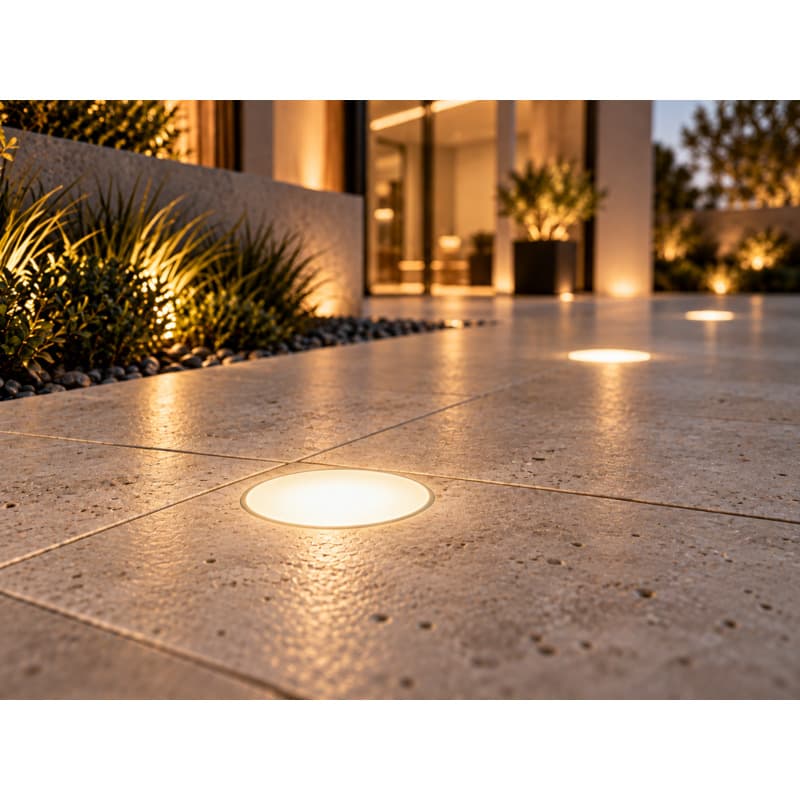

Upgrade your path with the Button DO. It is a round in-ground luminaire built for surfaces that get driven on. Rated for a drive-over load of 2.5 tonnes / 5500 lbs, it comes in three diameters — 55 mm / 2.2", 95 mm / 3.7" and 193 mm / 7.6" — all at a uniform 70 mm / 2.8" height, so a single detail can be repeated across scales of paving. Colour temperatures run 2200K CRI90 (Button 60 / 100 DO only), 2700K, 3000K and 4100K at CRI93, binned to a 3-step MacAdam ellipse. Features include B LIGHT's Unpolarized Electronic System, Safe Wiring, Two Wires Dimming and Water Stop Technology, with 0-10V, DMX or DALI control. Remote 24V DC power supply is not included. CE and ETL listed (certified to UL 2108, CSA C22.2).

Choose options

Configure the light

Required accessories

Needed to install · added to your quote · ×1
Choose oneChoose one to continue

Accessory quantities are indicative — we will confirm them in your quote.


On your quote · 1 line
Light
—Button DO×1
Required
—One of IP68 connector, 1 IN - 1 OUT (not chosen yet)×1
Part number for this configurationDT Base Variant to be determined - Supply to be determined Color Temperature to be determined 9G

Needs 1 installation part: one of IP68 connector, 1 IN - 1 OUT. It is added to your quote with the light. · choose one to continue

Choose one option under Required accessories to continue.

Please select all options above to continue.

Shipping delay : On request

*Please note: Colour swatches are for reference only and may not exactly match the final product
