1 / 6B-Light
Atria 100 FW
SKU: ATRIA-FW-100
Price on demand

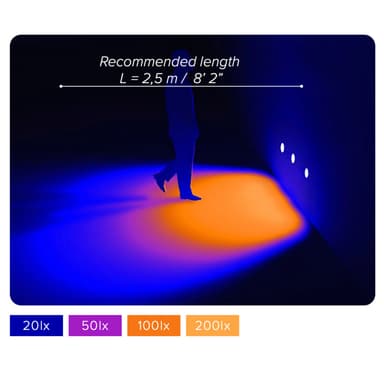

The Atria 100 FW transforms low-level architectural lighting with a precisely engineered asymmetric optical system. Unlike conventional recessed step lights that produce concentrated pools of light, Atria distributes illumination broadly and uniformly across the floor, creating a continuous visual connection between the wall and walking surface. Its Bartenbach reflector directs light downward and outward while controlling direct glare. The distinctive asymmetric distribution, extending from 5° to 75° toward the floor, delivers effective illumination without exposing occupants to a harsh light source. This makes Atria particularly suitable for circulation areas where visual comfort and spatial clarity are essential. With a discreet 103 mm circular face, the luminaire integrates into architectural walls using a dedicated recessed installation housing. Its machined aluminum construction, protective optical assembly and IP66 protection make it suitable for demanding applications, subject to applicable installation and certification requirements. Available in warm and neutral white colour temperatures, Atria combines high-quality light with efficient LED performance. The 48V DC version operates at 8W and supports dimming through compatible remote power supplies, including 0–10V and DALI control options.
Choose options
Configure the lightRequired accessories
Needed to install · added to your quote · ×1Accessory quantities are indicative — we will confirm them in your quote.
| Light | ||
|---|---|---|
| — | Atria 100 FW | ×1 |
| Required | ||
| — | One of Housing box for concrete or Adjustable housing box for concrete (not chosen yet) | ×1 |
Needs 1 installation part: one of Housing box for concrete or Adjustable housing box for concrete. It is added to your quote with the light. · choose one to continue
Choose one option under Required accessories to continue.
Please select all options above to continue.
Shipping delay : On request
*Please note: Colour swatches are for reference only and may not exactly match the final product
